RPU-4A1G1

Ka-Band Reconfigurable Transceiver

Overview

The Ka-Band Reconfigurable Transceiver is full-duplex, multi-channel satellite communications processor designed for the space environment. Operating over commercial and defense Ka-band frequencies, it supports standard modulation and coding schemes, including DVB-S2 and DVB-S2X, with support for on-orbit reconfiguration. Modulation, demodulation, and coding algorithms are performed in a state-of-the-art FPGA processor. As a multi-channel transceiver, the unit supports four transmit and four receive channels, allowing for applications with multiple polarizations, multiple antennas, or multi-beam apertures.

Product Specifications

Frequency
Tx: 17.7 to 21.2 GHz
Rx:  27.5 to 31  GHz
Bandwidth
Tx: Up to 1000 MHz
Rx: Up to 1000 MHz
Channels
Tx: 4
Rx: 4
Size
8.9" L x 8.9" W x 7.7" H*
DC Input Voltage
22 to 36 V
Baseplate Operating Temp
-24 to 61°C
Mass (Total System)
6.0 Kg*
*Depending on configuration

Core Modules

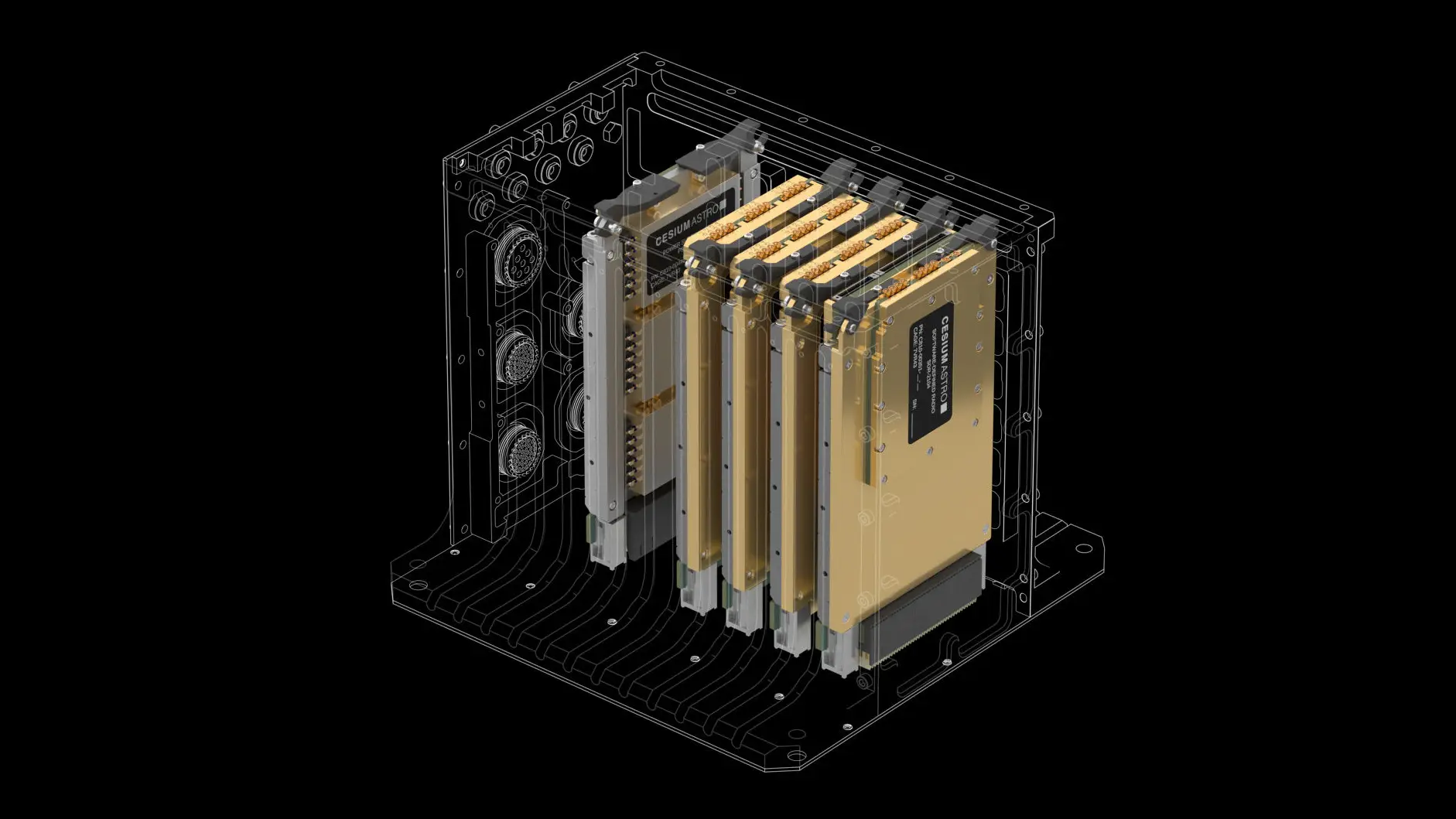

Mechanical View

Designed for the challenging environment of space, RPU-41AG1 meets NASA GEVS standards for thermal, shock, and vibe and is manufactured in CesiumAstro's AS9100 and ISO9001 certified facilities.

View Specifications

System Block Diagram

RPU-4A1G1 is comprised of a full stack of digital backend modules.

View Specifications

Additional Resources

A full suite of documentation is available to support integration of RPU-4A1G1 Transceiver into your mission. Our team stands ready to support you. Contact us for technical specifications or to discuss your programming challenges.
