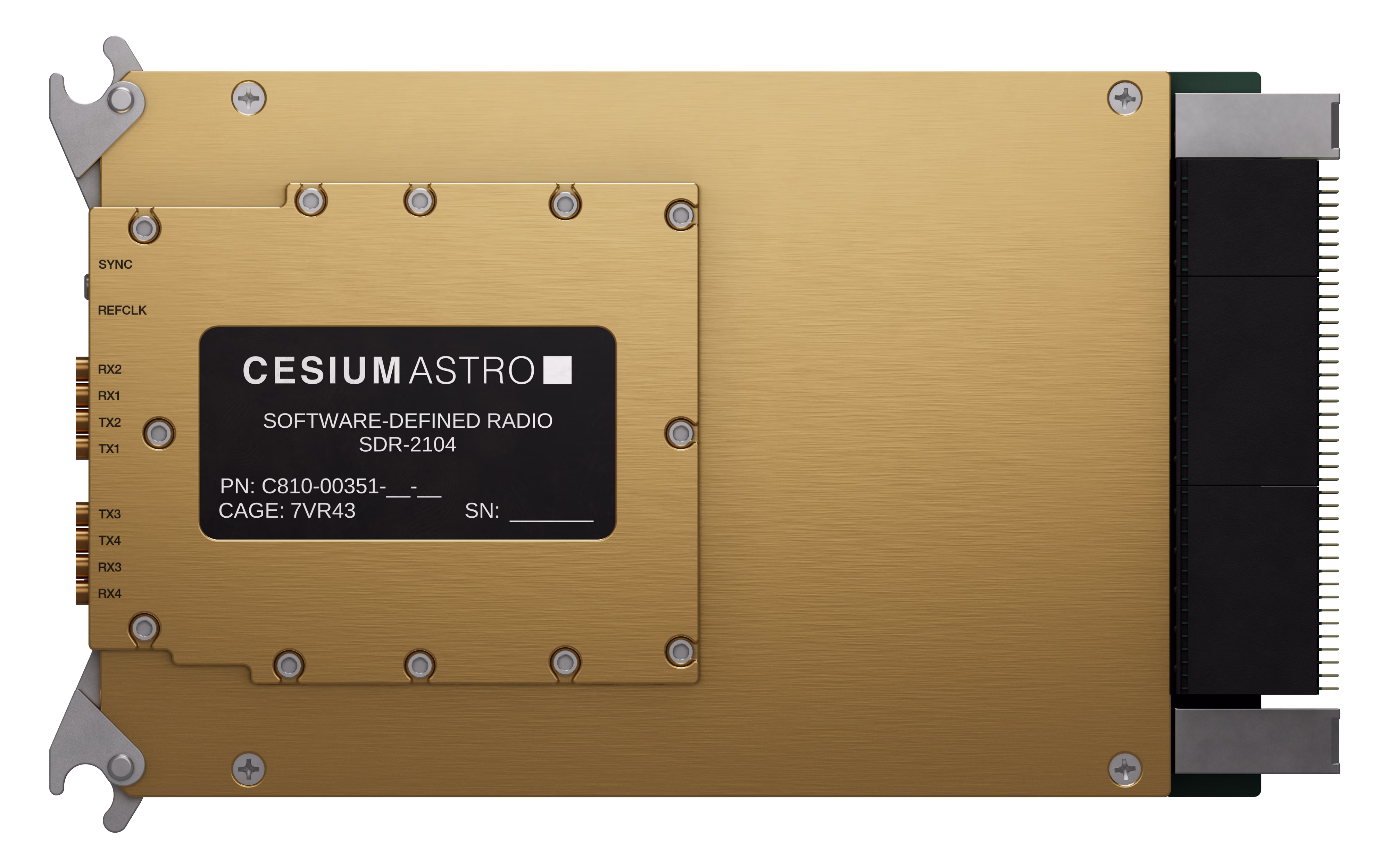

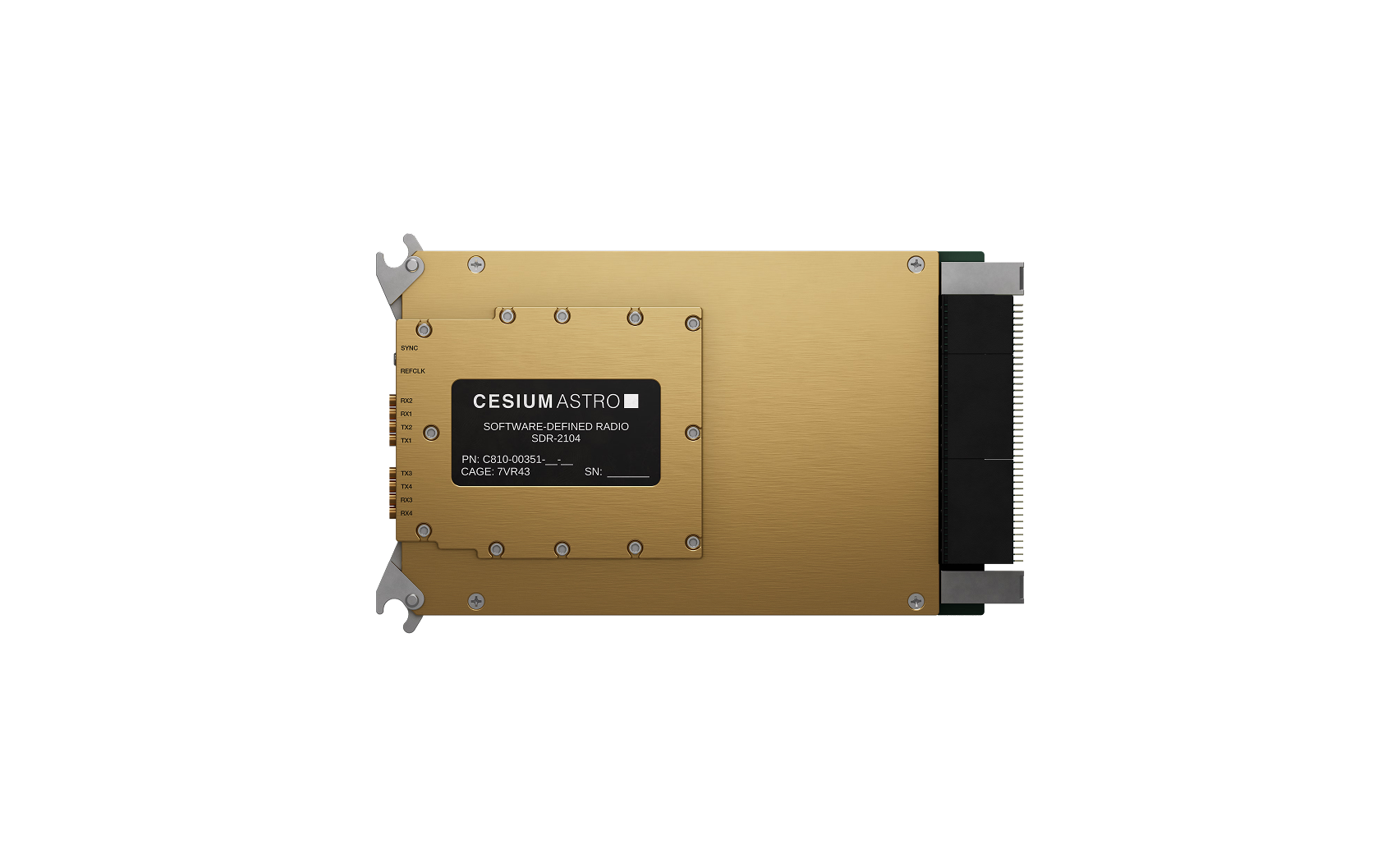

SDR-2104 - 3U SpaceVPX Software-Defined Radio

Overview

SDR-2104 is a software-defined radio with 4 transmit and 4 receive channels in a ruggedized 3U SpaceVPX form factor, supporting RF operation across UHF through X-band.

The system performs RF digitization, waveform generation, and signal processing across multiple channels for communications, sensing, and ranging applications. SDR-2104 is designed for integration into spacecraft payloads requiring multi-channel RF capability and deterministic performance.

Key Capabilities

Multi-Channel RF Operation

Four transmit and four receive channels
Simultaneous operation across RF links and mission functions
Supports communications, sensing, and ranging in a common SDR architecture

Wideband RF Digitization

Sample rates up to 11.52 GS/s (Tx) and 2.88 GS/s (Rx)
Enables multi-channel RF digitization and signal processing within defined instantaneous bandwidth limits

Reconfigurable Digital Architecture

AMD Versal Prime SoC-based processing
FPGA-based waveform processing, filtering, and channelization
On-orbit reconfiguration of signal processing chains

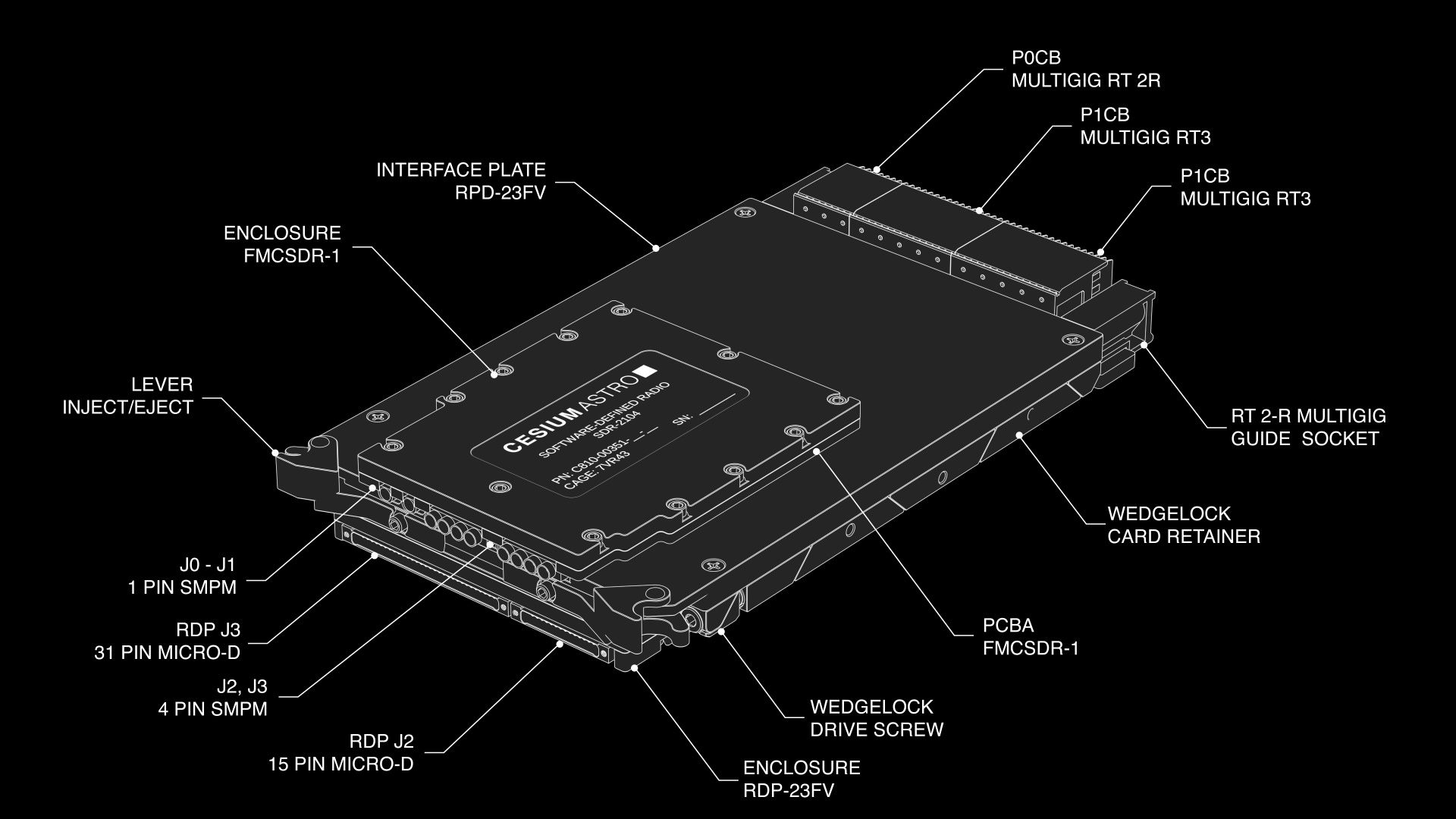

SpaceVPX Integration

3U SpaceVPX form factor
VPX backplane interfaces for system integration
Designed for modular spacecraft and distributed processing architectures

Applications

Satellite communications

Ranging and navigation support

Integrated communications and sensing payloads

Multi-channel RF mission systems

Specifications

RF Front-End Bandwidth

600 MHz to 10.2 GHz

Channels

Tx: 4
Rx: 4

Max. Instantaneous Bandwidth

1.152 GHz

Converter Rate

Tx: 11.52 GSam/sec
Rx: 2.88 GSam/sec

Converter Resolution

14 b

Max. IQ Rate

1.44 GSam/sec

Memory

8 GB DDR4 DRAM

Form Factor

3U SpaceVPX

Backplane Interfaces

6x GTY Quads,1000BASE-T Ethernet, LVDS, JTAG

Non-Volatile Storage

8 Gb MRAM

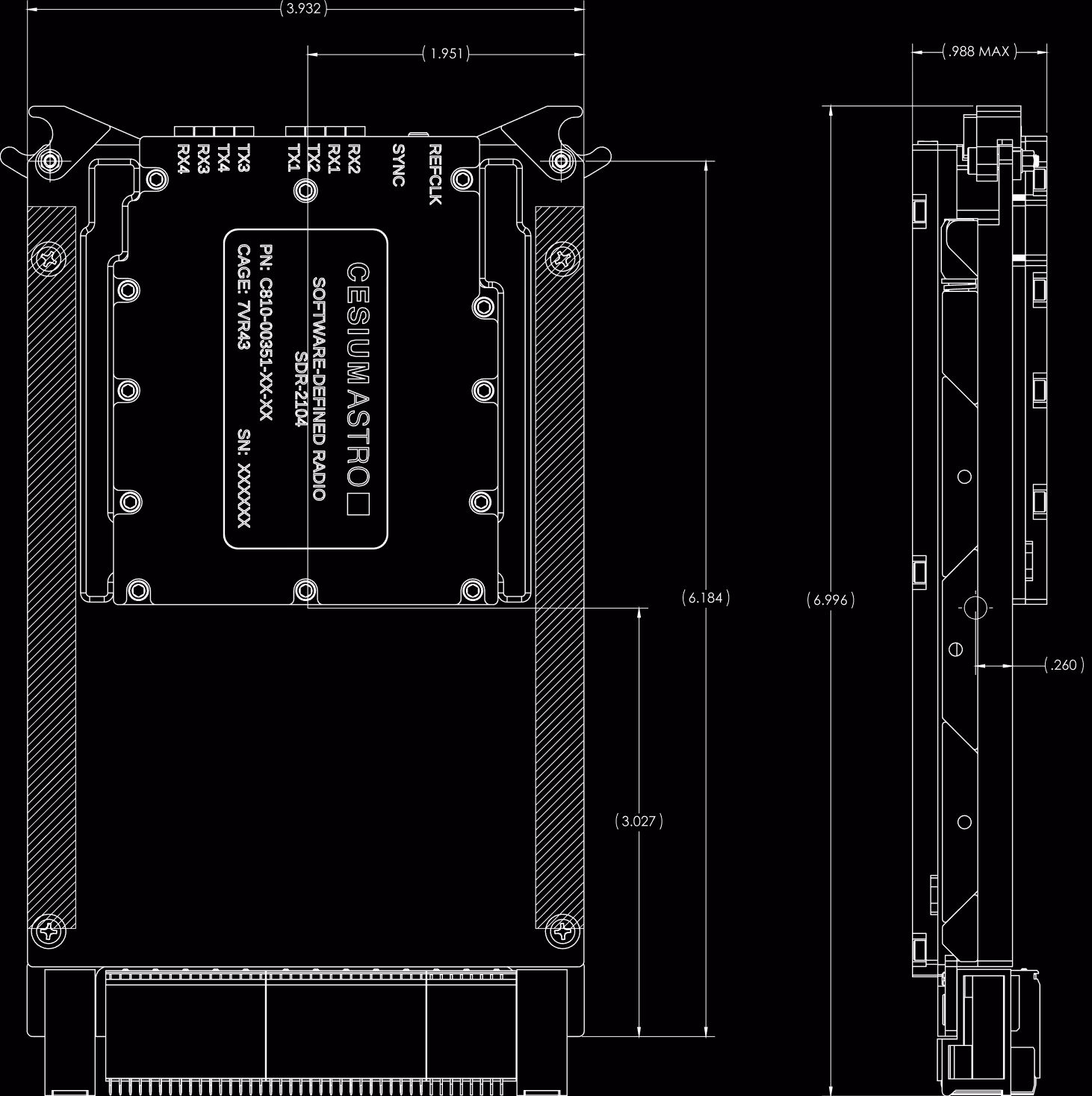

Size

7” L x 4” W x 1” H

Mass

900 g

Development Kit

The SDR-2104 Development Kit enables engineers to evaluate RF performance, develop custom firmware and waveforms, and enter system integration fully prepared, with fewer surprises and faster progress to flight.

With direct access to RF interfaces, FPGA fabric, and onboard processors, you can rapidly prototype, iterate, and refine mission-specific configurations in a lab setting. A complete board support package (BSP), including boot firmware, device drivers, and example software, removes bring-up friction so your team can focus on building and validating your mission application.
