SDR-1001

A high-performance, compact, software-defined radio designed to operate in LEO and airborne environments, SDR-1001 is suitable for demanding RF, digital signal processing, and communications applications supporting custom waveform development or DVB-S2/DVB-S2X and CCSDS modems.

Use as a stand-alone radio or combine with other CesiumAstro modules for a complete bits-to-photons solution.

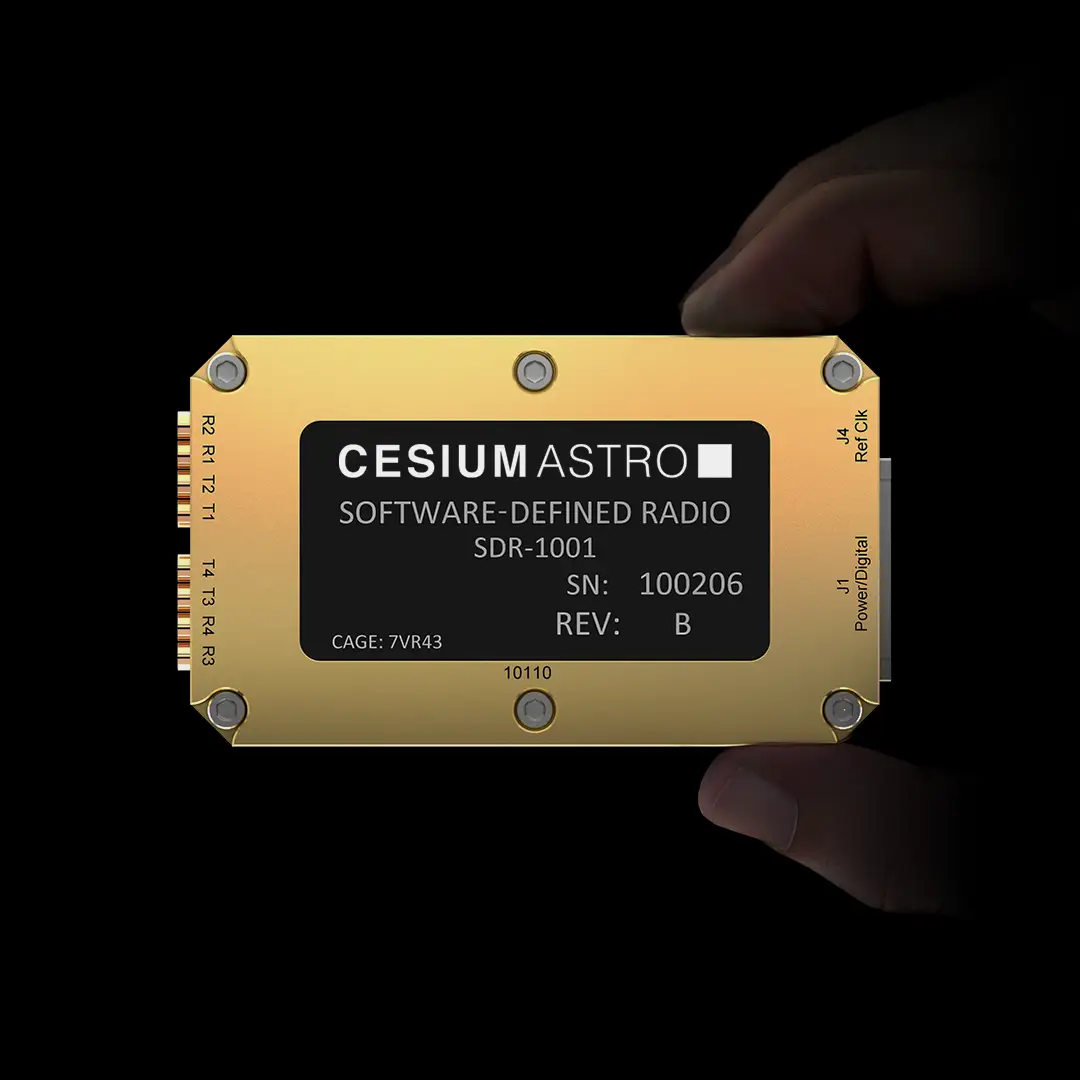

SDR-1001 includes four receive channels, four transmit channels, and a state-of-the-art FPGA in a credit-card-sized footprint.

VIEW SPECIFICATIONS

Low-profile and compact 50 mm x 84 mm x 13 mm packaged form-factor. Thermal pillars bring heat to the flat surface.

VIEW SPECIFICATIONS

Key Features

Highlights

4x 200 MHz Tx channels
4x 100 MHz Rx channels
TDD and FDD operation
Tunable from 300 MHz to 6 GHz
Tx up to 500 Mb/s on single channel
1000BASE-X, UART, and SpaceWire interfaces
FPGA Development Kit™ for user-customizable waveform development
Redundant boot flash with automatic failover and watchdog timers
Onboard telemetry sensing
Compact design with thermal pillars

Modems

BPSK/QPSK
DVB-S2(X)
CCSDS
Build your own

Applications

LEO, airborne, stratosphere
3- to 5-year LEO missions

Design Standards

NASA GSFC-STD-7000A testing
NASA EEE-INST-002 derating
MIL-DTL-32139 connectors

Product Specifications

9 V to 13 V

-24 °C to 61 °C

110 g

Mechanical View

Additional Resources

A full suite of documentation is available to support integration of SDR-1001 Software-Defined Radio into your mission. Our team stands ready to support you. Contact us for technical specifications or to discuss your programming challenges.
